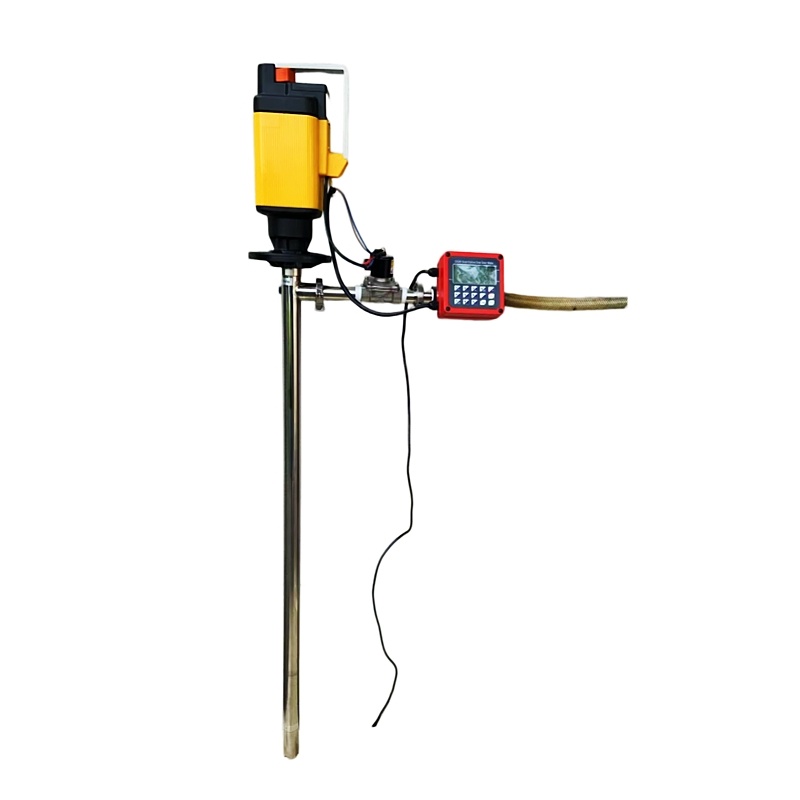

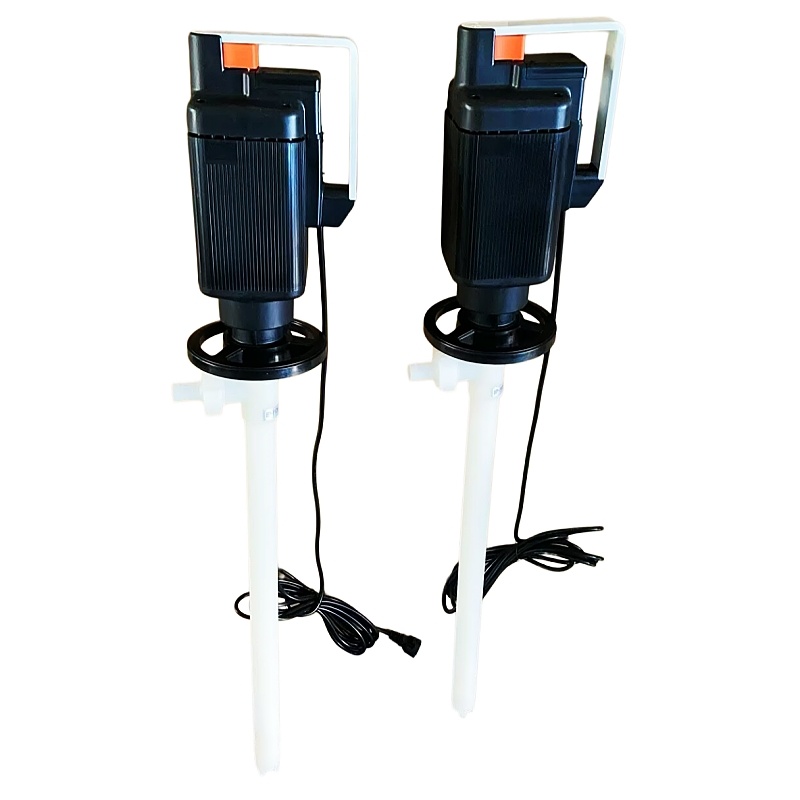

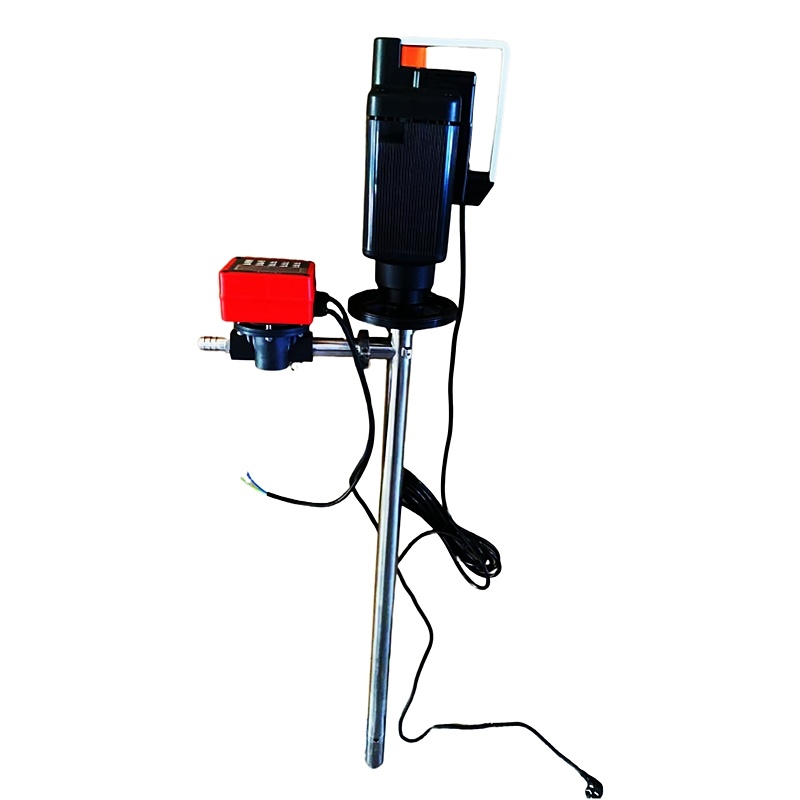

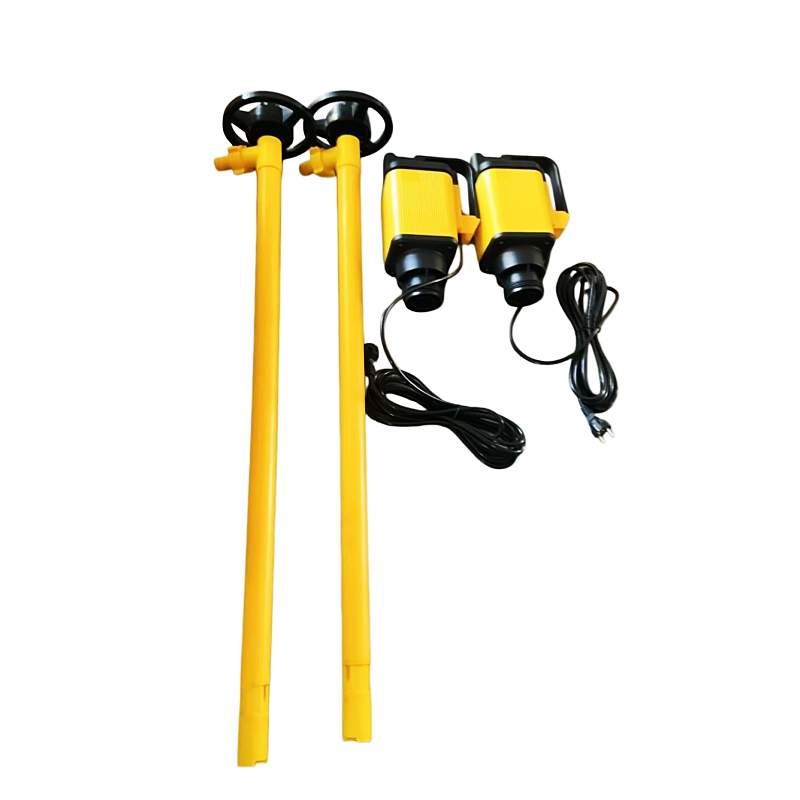

China portable drum pump

Product No.：2026226123520
Online Inquiry

China anti-corrosive drum pump application:

barrel liquid sub-packaging, tank liquid, strong acids and alkalis, electroplating potion delivery. PCB circuit board factory, semiconductor factory, paint, chemical industry, water treatment industry, etc.

Portable Drum pump pipe/ tube material:

aluminum alloy, Hastelloy;PPHT plastic, SS304 stainless steel, SUS316L stainless steel, PVDF polyvinylidene fluoride, PTFE polytetrafluoroethylene, Teflon

Barrel pump characteristics:

Drum pump pipe / tube without shaft seal design

Pump tube material: AL aluminum alloy, PPHT plastic, SS304 stainless steel, SUS316L stainless steel, PVDF polyvinylidene fluoride, PTFE polytetrafluoroethylene, Teflon

Maximum temperature resistance: 100°C /80°C /100°C /130°C/100°C/100°C

Motor type:

electric, pneumatic, explosion-proof pump tube length: 700, 1000, 1200, 1500, 1800mm and FY pneumatic barrel-type slurry pump, viscosity up to 120000mPas

Outlet diameter: conventional configuration 1" maximum flow rate: 0-100 L/min 0-165 L/min maximum lift: 0-12 m 0--30 m (HP high-lift impeller) Maximum viscosity of delivery: 1000CPS

Suitable for conveying liquids: barrel liquids, tank liquids, strong acids and alkalis, electroplating potions, greases, flammable and explosive liquids and their packaging.
