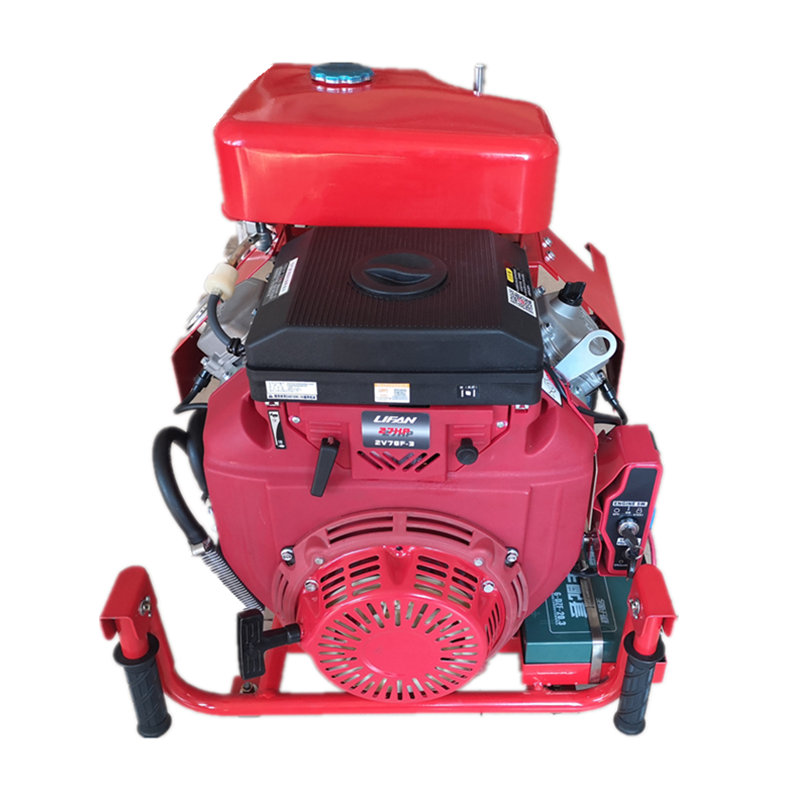

Application: The hand-carried/portalbe fire-fighting pump is composed of centrifugal water pump, priming device, gasoline or diesel engine. With large flow, high head, and long shooting distance, it is mainly used for fire fighting and forest fire fighting, also be used for the transportation of other clean liquids. The pump is small in size, flexible to move, could be easily placed in the fire equipment box on the side of the fire trucks or other fire vehicles. It is an ideal equipment for professional fire brigade, industrial and mining enterprises, ship firefighting, large warehouses, oil depots, stations, docks, counties, villages, etc. It has more advantageous in areas or places where fire-fighting vehicles cannot reach, we could use this kind of fire pump to extinguish fires or control the spread of fire, which can actively prevent fires and reduce losses caused by fires. The engine driven portable pump is also called multifunctional mobile centrifugal water pump as it can also be used for flood drainage, drought resistance, green irrigation, high-rise water supply, site washing, etc.

Engine Model	V-Twin,air-cooled,4-stroke,2V78F
Displacement	688ml
Pump body	Single stage centrifugal
Fuel tank capacity	7L
Oil capacity	1.6L
Starting system	Recoil/electric start
Max flow	1500L/min
Pressure	0.6mpa
Max suction depth	≥7m
Priming type	Rotary vane vacuum pump
Priming time	≤20s
Pump head	80m
Inlet	80mm
Outlet	65mm
Weight	98kg
Appearance size	720*630*630mm
